EVIRONMENTAL RATING
-----------------(MAXIMUM)---------------

Operating Temperature ...................-65°C to +125°C
Storage Temperature.......................-65°C to +150°C
Power Dissipation @ 25°C..............100mW. Derate
...............................................Linearly to zero at 125°C
Soldering Temperature...........230°C for 5 seconds

Tunnel Application Data

Click below to down load Pdf data

Tunnel Diodes Pdf

Tunnel Diodes

Part Number

Case
Style
Ip range
Iv max
Vr(typ)
Vf(max)
Ct (max)
Ir = 500mA
If = 3mA
(uA)
(uA)
(mV)
(mV)
(pF)
Tunnel Diode
MP1101
0 - 100
40
425
150
0.2
Tunnel Diode MP1100
0 - 100
40
425
145
0.25
Tunnel Diode MP1102
0 - 100
40
425
145
0.3
Tunnel Diode MP1103
0 - 100
40
425
145
0.4
Tunnel Diode MP1104
0 - 100
40
425
145
0.5
Tunnel Diode MP1105
0 - 100
40
425
145
0.7
Tunnel Diode MP1201
100 - 200
80
425
135
0.2
Tunnel Diode MP1200
100 - 200
80
425
130
0.25
Tunnel Diode MP1202
100 - 200
80
425
125
0.3
Tunnel Diode MP1203
100 - 200
80
425
130
0.4
Tunnel Diode MP1204
100 - 200
80
425
130
0.5
Tunnel Diode MP1205
100 - 200
80
425
130
0.7
Tunnel Diode MP1301
200 - 300
100
425
125
0.2
Tunnel Diode MP1300
200 - 300
100
425
125
0.25
Tunnel Diode MP1302
200 - 300
100
425
120
0.3
Tunnel Diode MP1303
200 - 300
100
425
120
0.4
Tunnel Diode MP1304
200 - 300
100
425
120
0.5
Tunnel Diode MP1305
200 - 300
100
425
120
0.7
Tunnel Diode MP1451
300 - 450
150
425
120
0.2
Tunnel Diode MP1450
300 - 450
150
425
120
0.25
Tunnel Diode MP1452
300 - 450
150
425
120
0.3
Tunnel Diode MP1453
300 - 450
150
425
115
0.4
Tunnel Diode MP1454
300 - 450
150
425
115
0.5
Tunnel Diode MP1455
300 - 450
150
425
115
0.7
Tunnel Diode MP1601
450 - 600
225
425
115
0.2
Tunnel Diode MP1600
450 - 600
225
425
110
0.25
Tunnel Diode MP1602
450 - 600
225
425
105
0.3
Tunnel Diode MP1603
450 - 600
225
425
110
0.4
Tunnel Diode MP1604
450 - 600
225
425
110
0.5
Tunnel Diode MP1605
450 - 600
225
425
110
0.7

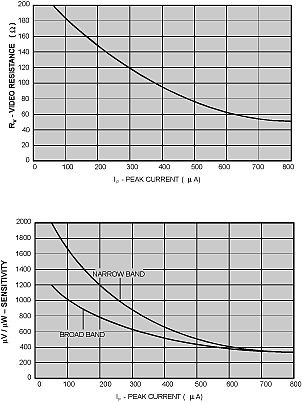

Tunnel Application Data

Typical Detector Circuits



Chip (C2) Assembly Notes

Thermo Compression Wedge Bonding:
1.Use 0.7 mil gold wire.
2.Tip temperature =180°C MAX
3.Stage temperature =160°C MAX
.
Die attach.
1.Silver epoxy with a maximum cure
  temperature of 125°C is recommended
Package Assembly Notes
Lead Attach
1.230°C Solder attach for 5 sec. MAX.
CAUTION!
Extremely Static Sensitive Devices
Notes
 1.Chip top is cathode.
 2. Detected output will be negative
from the cathode contact.
